H10.4 input batch feeder
Developed for agriculture – efficient and cost-effective

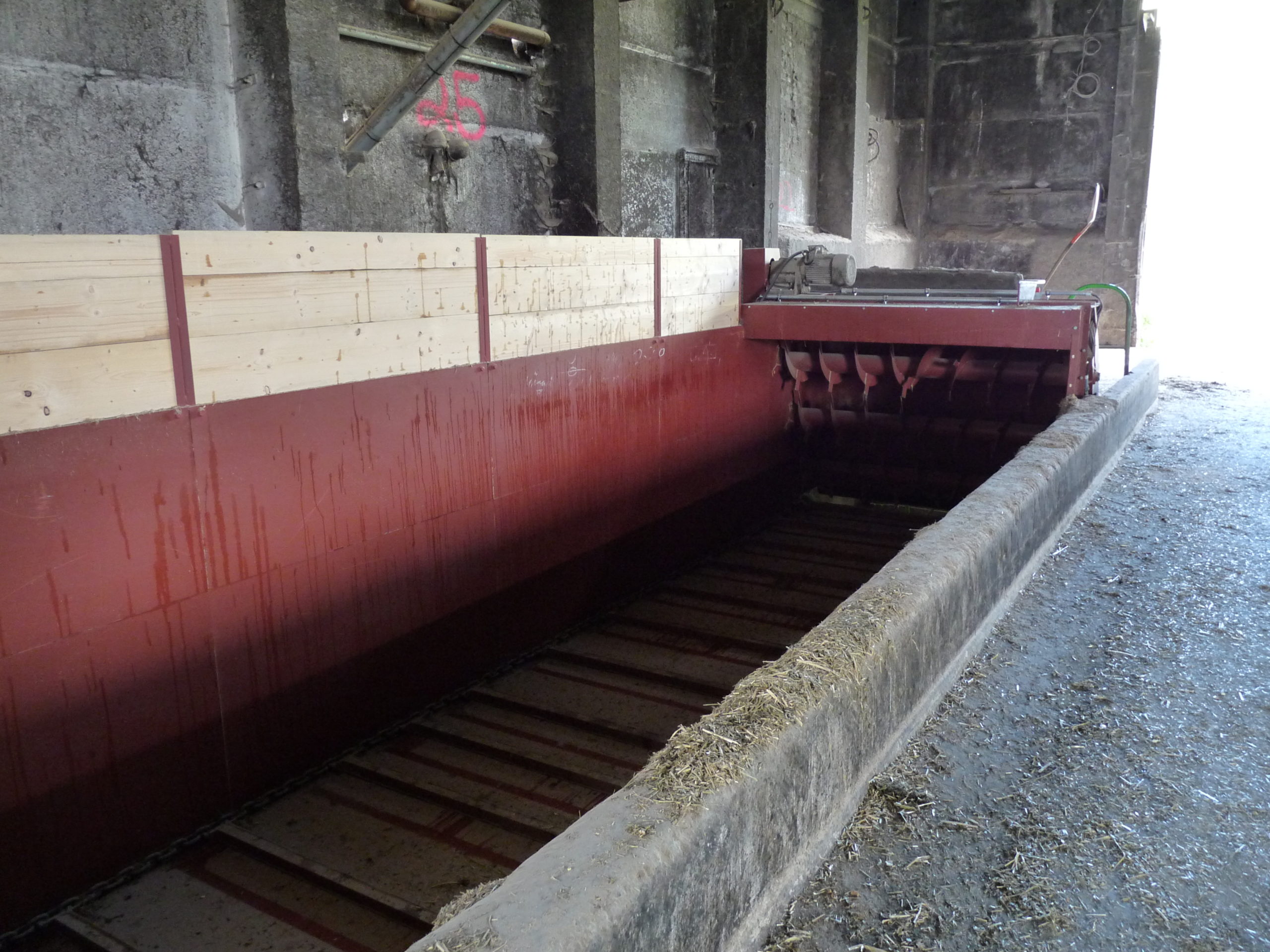

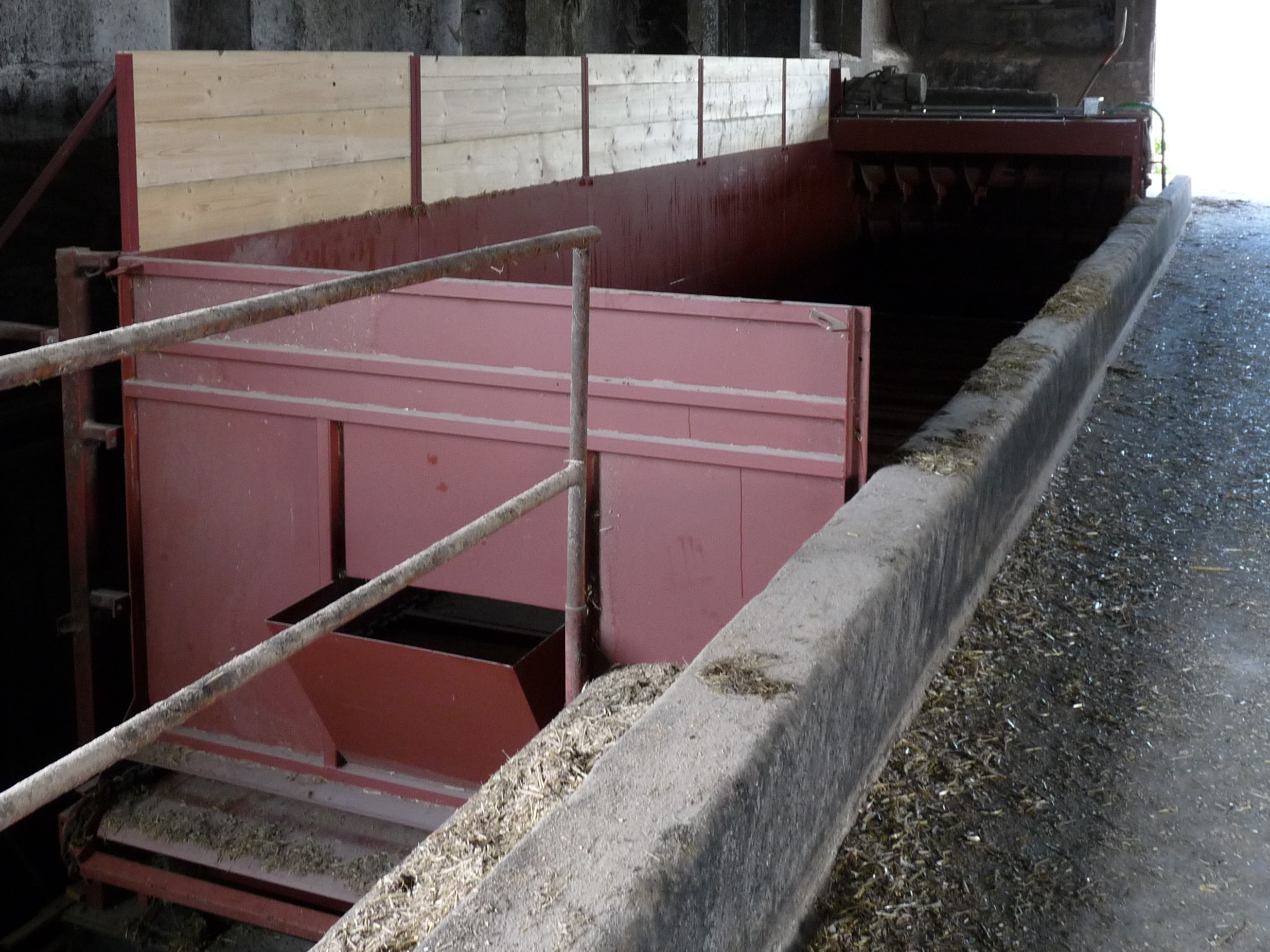

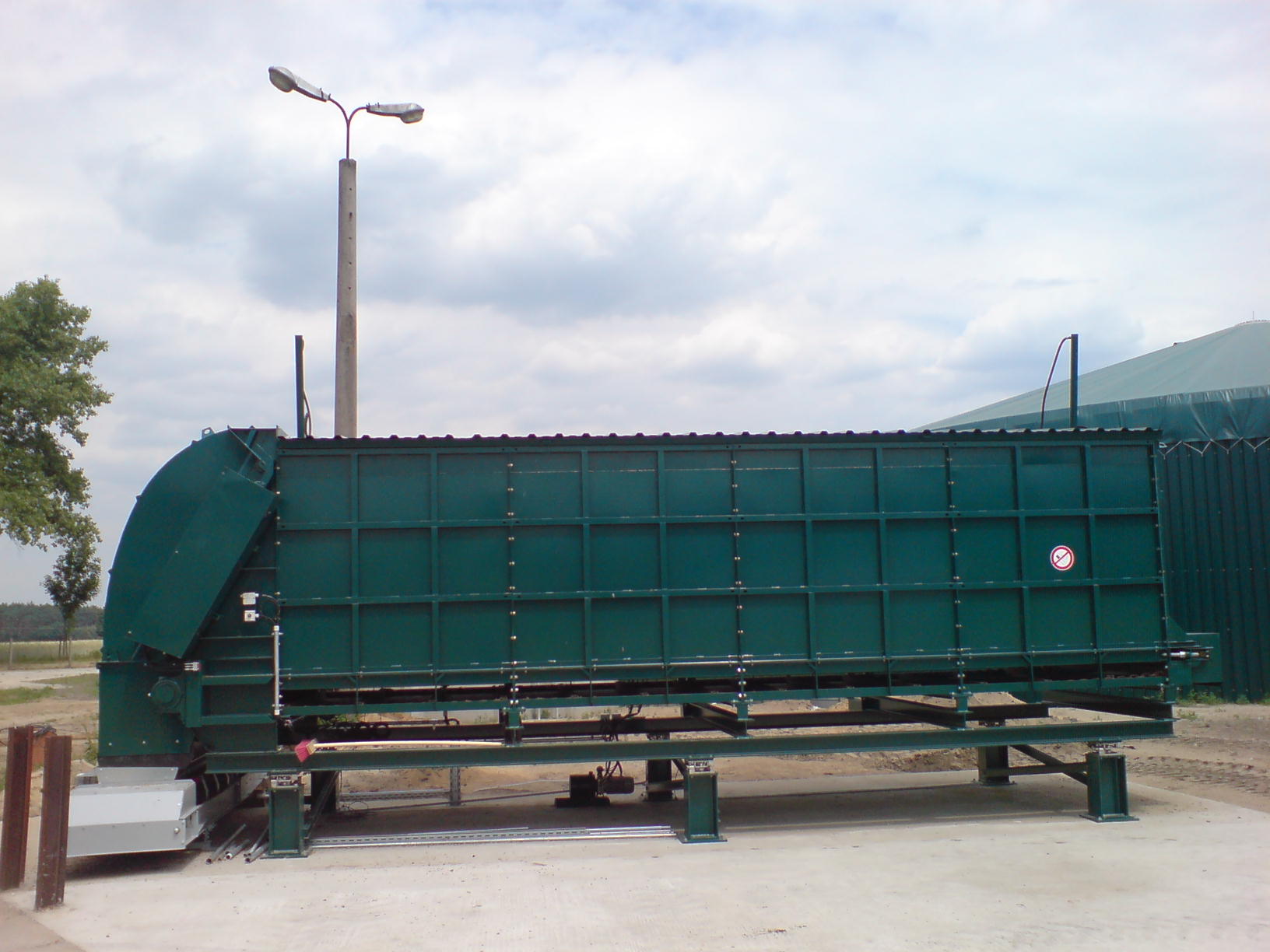

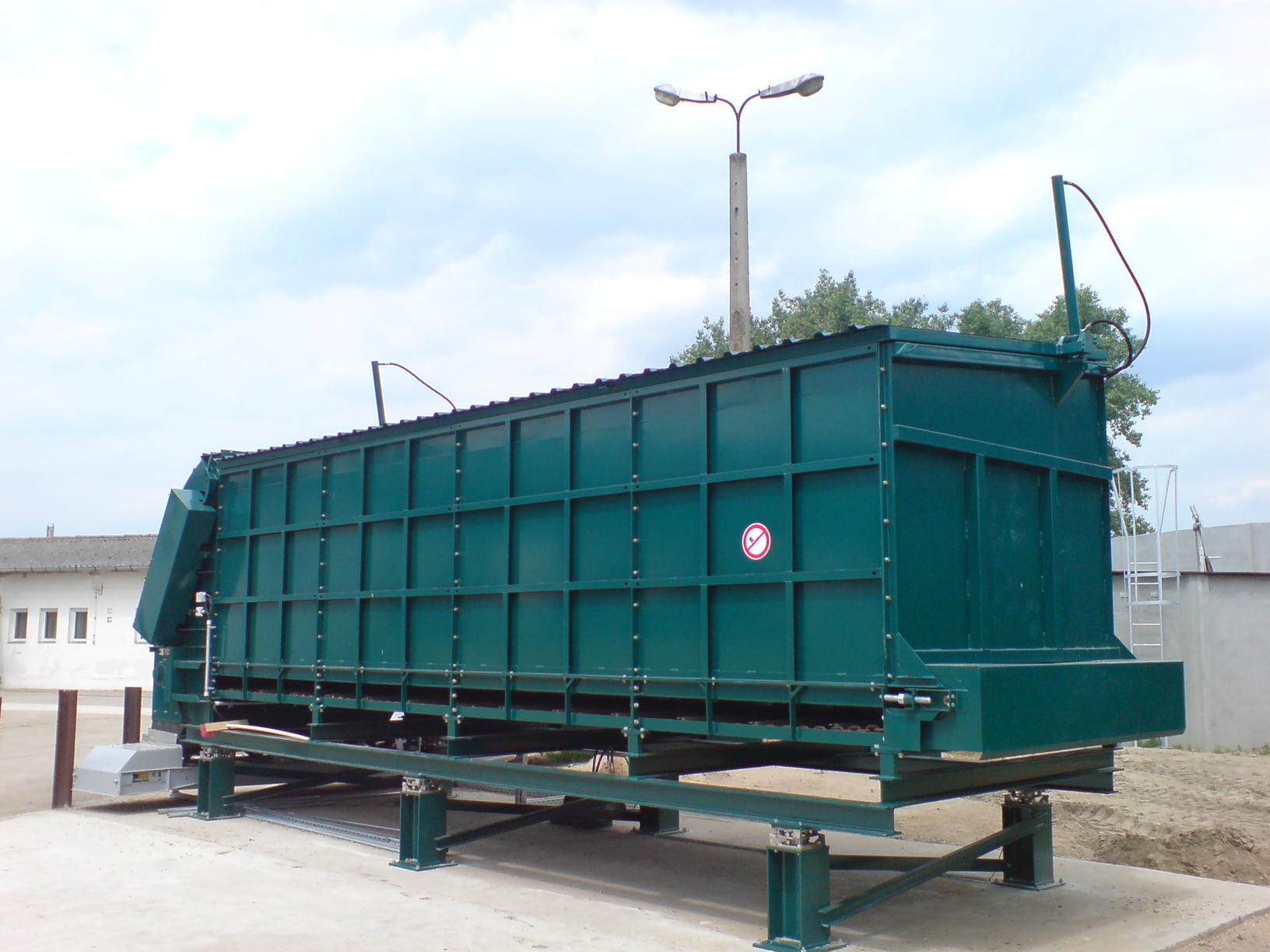

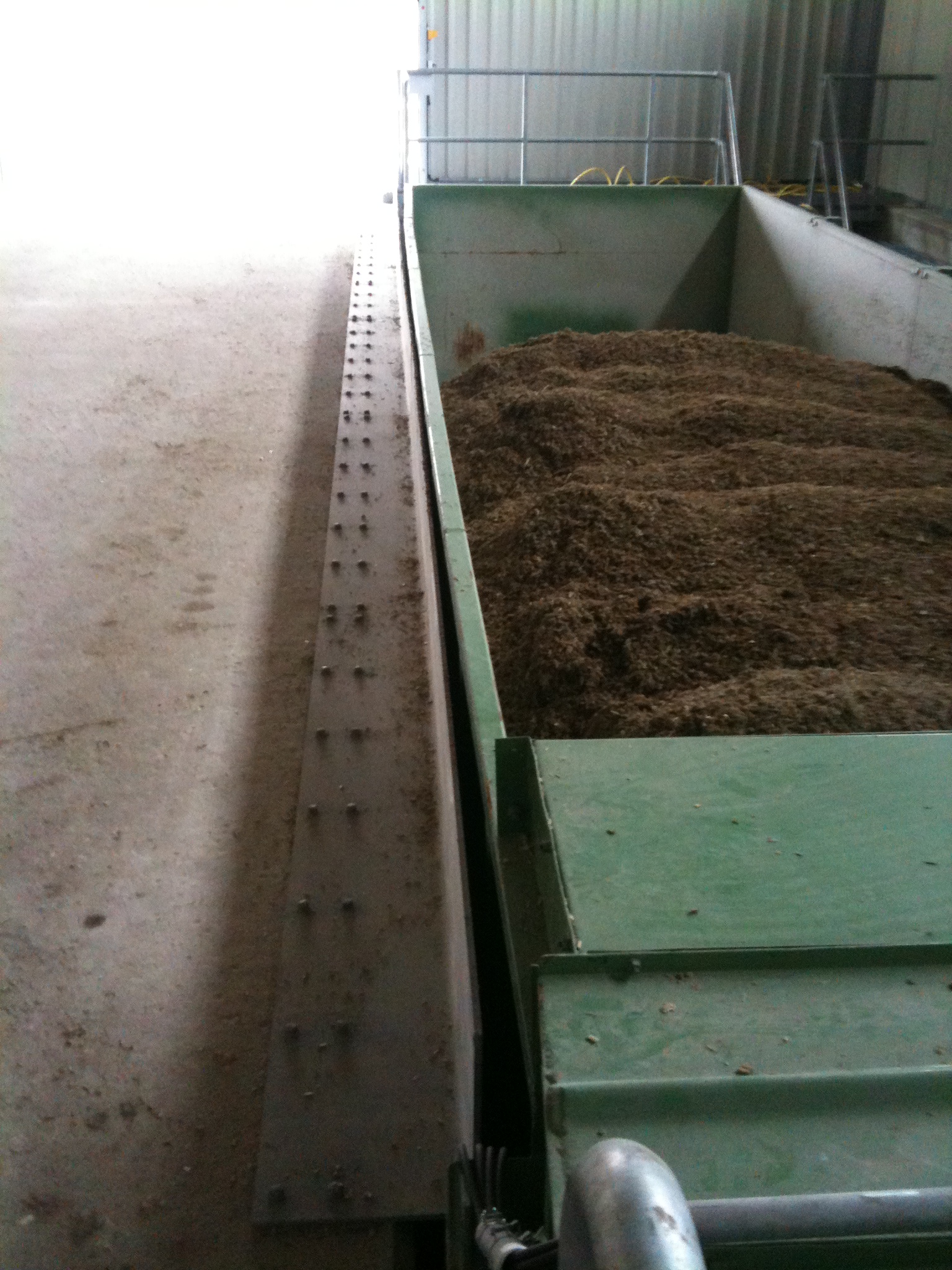

The H10 input batch feeder is used for receipt, temporary storage and metered dispensing of coarse feedstuffs and other bulk solids in agricultural belt feeding systems. The unit is built using a modular design. Variable holding is achieved through control of the scraper-chain base using frequency converters. Production of a mixture of bulk solids in feed preparation facilities is possible through the output from various components.

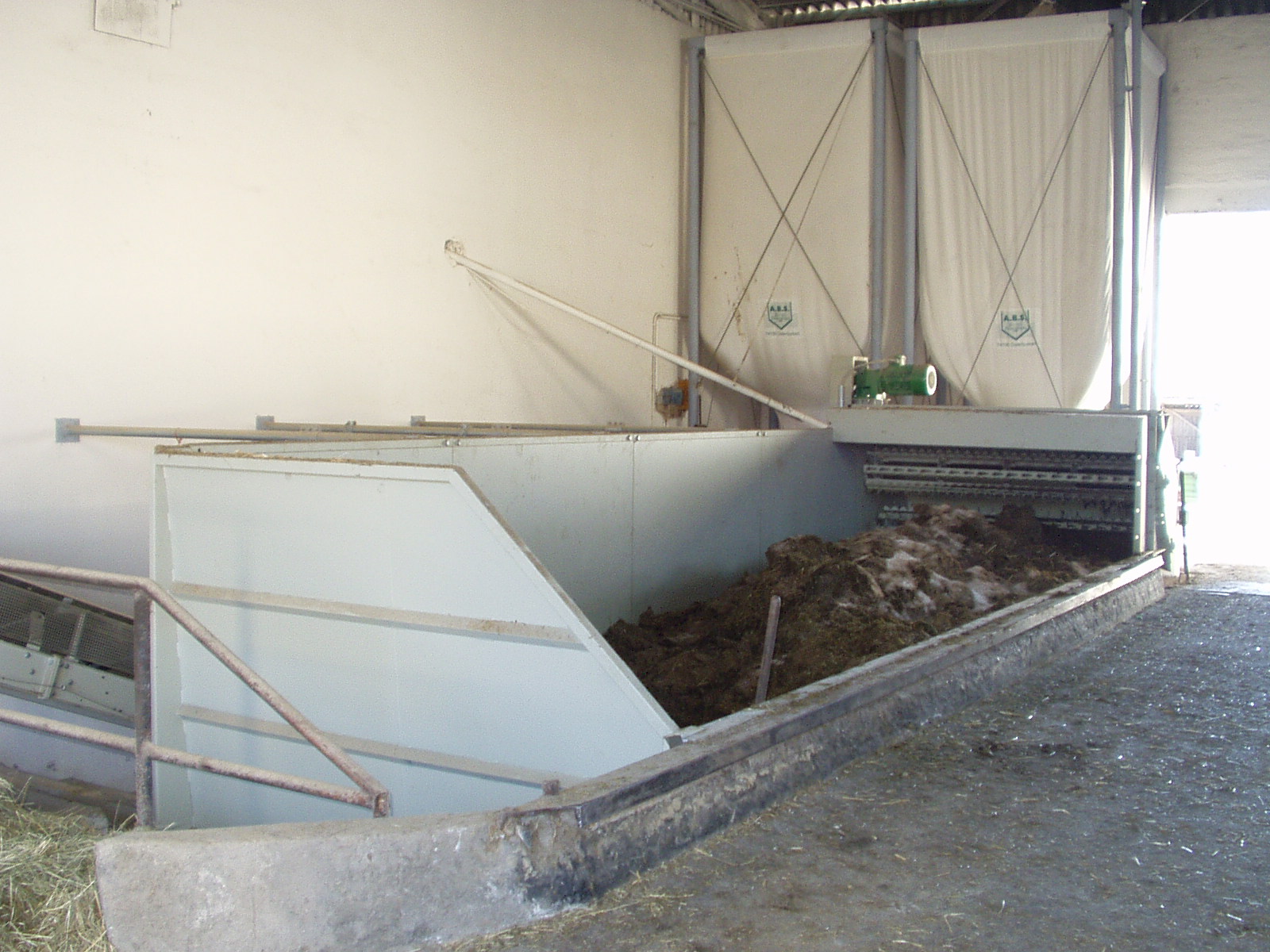

Loading can be done using torque discharge from a tipping trailer or using a wheel loader. A bed level equaliser can be used for even distribution of material with selective loading from a conveyor belt or screw conveyor.
Silo volume | Up to 60 m³ | m³ |
Silo length | Up to 14400 in steps of 1800 | mm |
Silo width | 2400 | mm |
Max. fill height | 1750 | mm |
Possible throughput | 0 – 100 | m³/h |
Opening drums | 3 | Units |
Chain type | Round link chain |
- Container cover
- Weighing
- Electrical control system
- Further conveyor technology such as conveyor belts, screws, scraper-chain conveyors
- Equalisation attachment (bed level equaliser)
